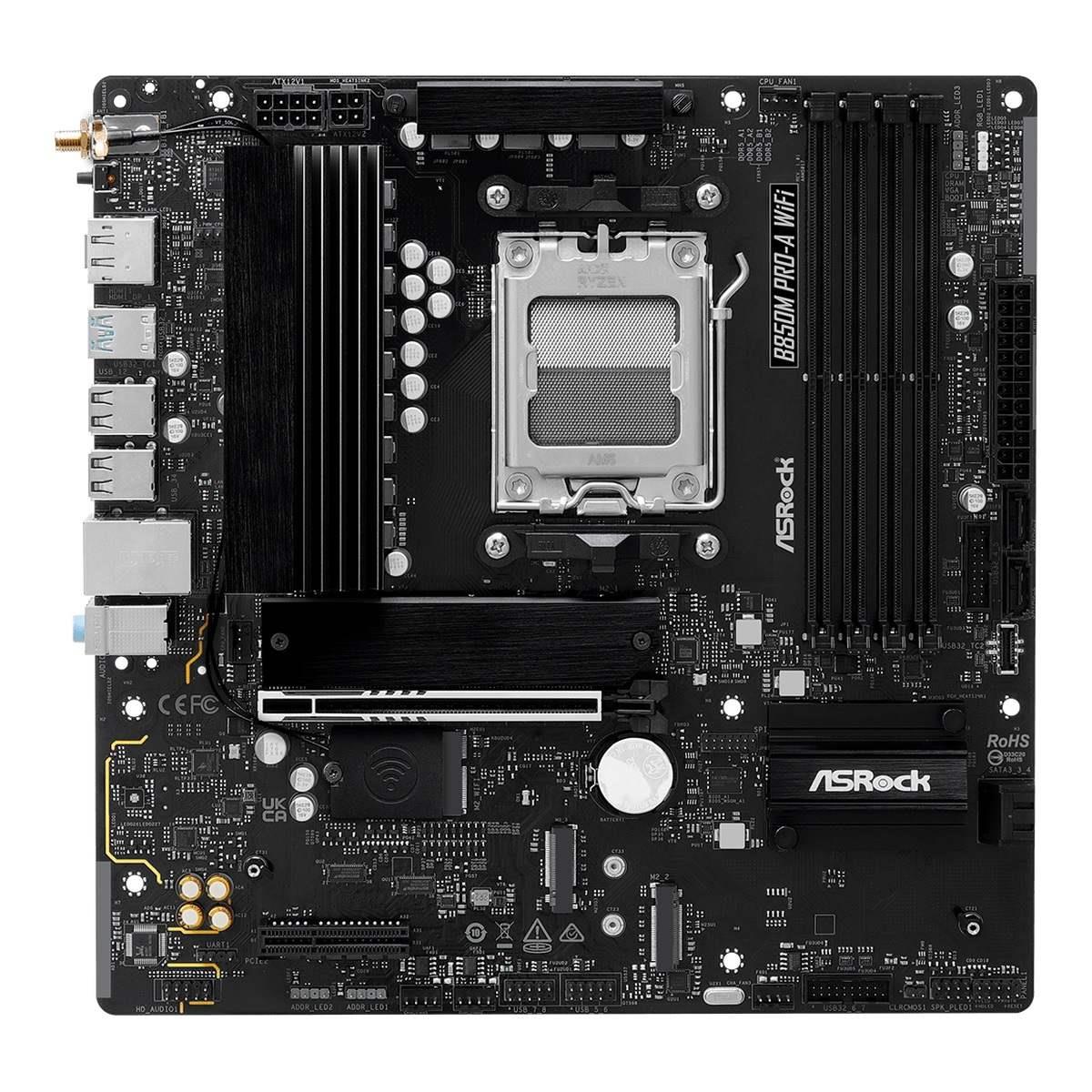

Płyta ASrock B850M Pro-A WiFi /AMD B850/DDR5/SATA3/M.2/USB3.1/WiFi/BT/PCIe5.0/AM5/mATX

INDEKS 4711581490376

KOD ID PGARA5M510C0

CENA:
680.99 zł brutto

Dostępnych w magazynie: 30
Dostawa do sklepu stacjonarnego trwa 1-2 dni robocze.




Udostępnij

Szczegóły

Producent ASROCK
Wyposażenie dodatkowe - 2 x SATA Data Cables, - 2 x ASRock WiFi 2.4/5/6 GHz Antennas, - 1 x I/O Shield
Maksymalna wielkość pamięci 256 GB
Chipset płyty głównej AMD B850
Wymiary [S x W] (mm) 244 x 244
Opakowanie BOX
Gniazdo procesora Socket AM5
Standard pamięci DDR5-8000+ (OC)
Format płyty Micro-ATX
Wbudowana karta graficzna Brak lub AMD RDNA™ 2 (zależy od procesora)
Obsługiwane typy procesorów AMD Ryzen™
Uwagi do procesora - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
Tryb pracy pamięci RAM Dual Channel
Gniazda karty graficznej HDMI, DisplayPort
Uwagi do karty graficznej - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. , resolution up to 4K 120Hz, - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. , resolution up to 4K 120Hz
Zintegrowana karta dźwiękowa Realtek ALC897
Gniazda karty dźwiękowej 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16 1
Uwagi do złącz PCI CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, Chipset:, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, - 15µ Gold Contact in VGA PCIe Slot (PCIE1)
Uwagi do karty sieciowej Supports Dragon 2.5G LAN Software, - Smart Auto Adjust Bandwidth Control, - Visual User Friendly UI, - Visual Network Usage Statistics, - Optimized Default Setting for Game, Browser, and Streaming Modes, - User Customized Priority Control
Port Bluetooth Bluetooth V5.2
Port równoległy (LPT) Brak
Inne porty i gniazda SPI TPM header (14-1pin), Power LED and Speaker Header, RGB LED Header, 3x Addressable LED Headers, 2x CPU Fan connector(s) , 3x Chassis Fan Connectors, Front Panel Audio Connector, BIOS FlashBack button , 2x Antenna Ports
Gniazdo zasilania ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Uwagi do pamięci RAM Supports DDR5 ECC/non-ECC, Supports Extreme Memory Profile (XMP) and EXTended Profiles for , Overclocking (EXPO) memory modules
Uwagi do karty dźwiękowej - 7.1 CH HD Audio
Złącza PCI Express x4 1
Okres rękojmi w miesiącach 36
Zintegrowany kontroler SATA Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA CPU:, - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 , (128 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 , (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 , (64 Gb/s) mode, - 4 x SATA3 6.0 Gb/s Connectors, Supports NVMe SSD as boot disks, M2_1 is the first priority for M.2 installation., M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 , with 8000 (Phoenix 1 and Phoenix 2) series processors., M2_3 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with , 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) , series processors., If M2_3 is occupied, PCIE2 will be disabled., Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices, Requires additional M.2 NVMe expansion cards to support RAID 10
Port Wi-Fi IEEE 802.11a/b/g/n/ac/ax/axe
Port LAN 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Port PS/2 Brak
Port szeregowy (COM) Brak
Maksymalna ilość portów USB 2.0 8
Maksymalna ilość portów USB 3.x 9
Porty USB na panelu tylnym 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C
Gniazda USB na płycie głównej 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.0 Type-C
Cechy B850M Pro-A;mATX
Baza SCIP Nie
Ilość złącz pamięci DDR5 4
Uwagi do WiFi / BT - 802.11axe Wi-Fi 6E Module, - Supports Dual-Band 2x2 with extended 6GHz band support, - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, - Supports MU-MIMO, The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is , driver available for Windows® 10. The availability of the 6GHz band will , depend on the different regulation status of each country and region. It , will be activated (for supported countries) through Windows® Update and , software updates once available., A 6GHz compatible router is required for 6E functionality.

Informacje GPSR

Szczegółowe informacje o warunkach oraz bezpiecznym użytkowaniu znajdują się w dokumentacji dołączonej do produktu lub na stronie producenta. Przed rozpoczęciem użytkowania produktu należy koniecznie zapoznać się z dokumentacją.

Producent

ASRock Incorporation, Taipei City, TAIWAN, info@asrock.com.tw,

Podmiot odpowiedzialny

ASRock EUROPE B.V., Nijmegen, NETHERLANDS, sales@asrock.nl, +31-24-345-44-33,
