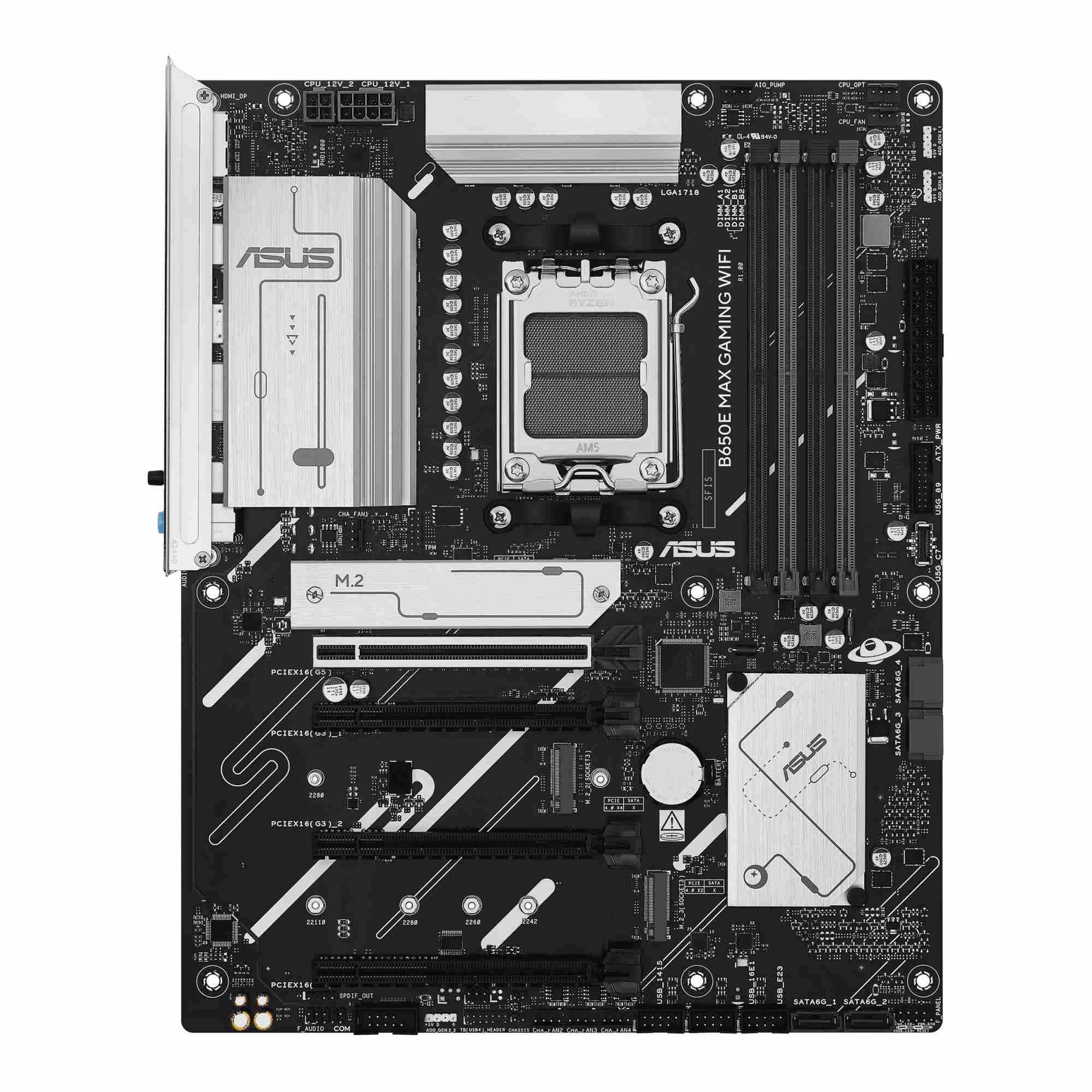

Płyta Asus B650E MAX GAMING WIFI /AMD B650/DDR5/SATA3/M.2/WiFi/BT/PCIe5.0/AM5/ATX - USZ OPAK

INDEKS 4711387932445

KOD ID PGASA5M460NZ

CENA:
886.99 zł brutto

Dostępnych w magazynie: 2
Dostawa do sklepu stacjonarnego trwa 1-2 dni robocze.




Udostępnij

Szczegóły

Producent ASUS
Wyposażenie dodatkowe 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 Rubber Package, 3 x Screw packages for M.2 SSD, 1 x Quick start guide
Maksymalna wielkość pamięci 256 GB
Chipset płyty głównej AMD B650
Wymiary [S x W] (mm) 305 x 244
Opakowanie BOX
Gniazdo procesora Socket AM5
Standard pamięci DDR5-8000+ (OC)
Format płyty ATX
Wbudowana karta graficzna Brak lub AMD Radeon™ Graphics (zależy od procesora)
Obsługiwane typy procesorów AMD Ryzen™ (AM5)
Uwagi do procesora AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Tryb pracy pamięci RAM Dual Channel
Gniazda karty graficznej HDMI, DisplayPort
Uwagi do karty graficznej Supports max. 8K@30Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1
Zintegrowana karta dźwiękowa Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wewnętrzne gniazdo S/PDIF Out
Złącza PCI Express x16 4
Uwagi do złącz PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B650 Chipset :, - 1 x PCIe 4.0 x16 slot (support x4 mode), - 2 x PCIe 3.0 x16 slots (support x1 mode), The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2, The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 run
Uwagi do karty sieciowej ASUS LANGuard
Port Bluetooth Bluetooth V5.3
Port równoległy (LPT) Brak
Inne porty i gniazda 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, Clear CMOS header, SPI TPM header (14-1pin), 10-1 pin System Panel header, Thunderbolt 4 header, 2x Antenna Ports
Gniazdo zasilania ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Uwagi do pamięci RAM Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Process, ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
Uwagi do karty dźwiękowej Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for , 7.1 Surround Sound audio, A chassis with an HD audio module in the front panel is required to, support 7.1 Surround Sound audio output
Okres rękojmi w miesiącach 36
Zintegrowany kontroler SATA Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA AMD Ryzen 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), AMD Ryzen 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode), AMD B650 Chipset:, - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode), - 4 x SATA 6Gb/s ports, AMD RAIDXpert2 Technology:, - Ryzen 9000 Series Processors: RAID 0/1/5/10, - Ryzen 8000 Series Processors: RAID 0/1, - Ryzen 7000 Series Processors: RAID 0/1/10
Port Wi-Fi IEEE 802.11a/b/g/n/ac/ax
Port LAN 1x 2,5 Gigabit LAN Realtek®
Port szeregowy (COM) 1x wewnętrzne gniazdo portu COM
Maksymalna ilość portów USB 2.0 8
Maksymalna ilość portów USB 3.x 9
Porty USB na panelu tylnym 2x USB 2.0 + 2x USB 3.0 + 4x USB 3.1
Gniazda USB na płycie głównej 3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)
Cechy B650E MAX GAMING WIFI;ATX
Baza SCIP Nie
Ilość złącz pamięci DDR5 4
Uwagi do WiFi / BT 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) , Supports 2.4/5/6GHz frequency band, WiFi 6E 6GHz regulatory may vary between countries, The Bluetooth version may vary, please refer to the Wi-Fi module , manufacturer's website for the latest specifications
Zawiera baterię / akumulator Tak
