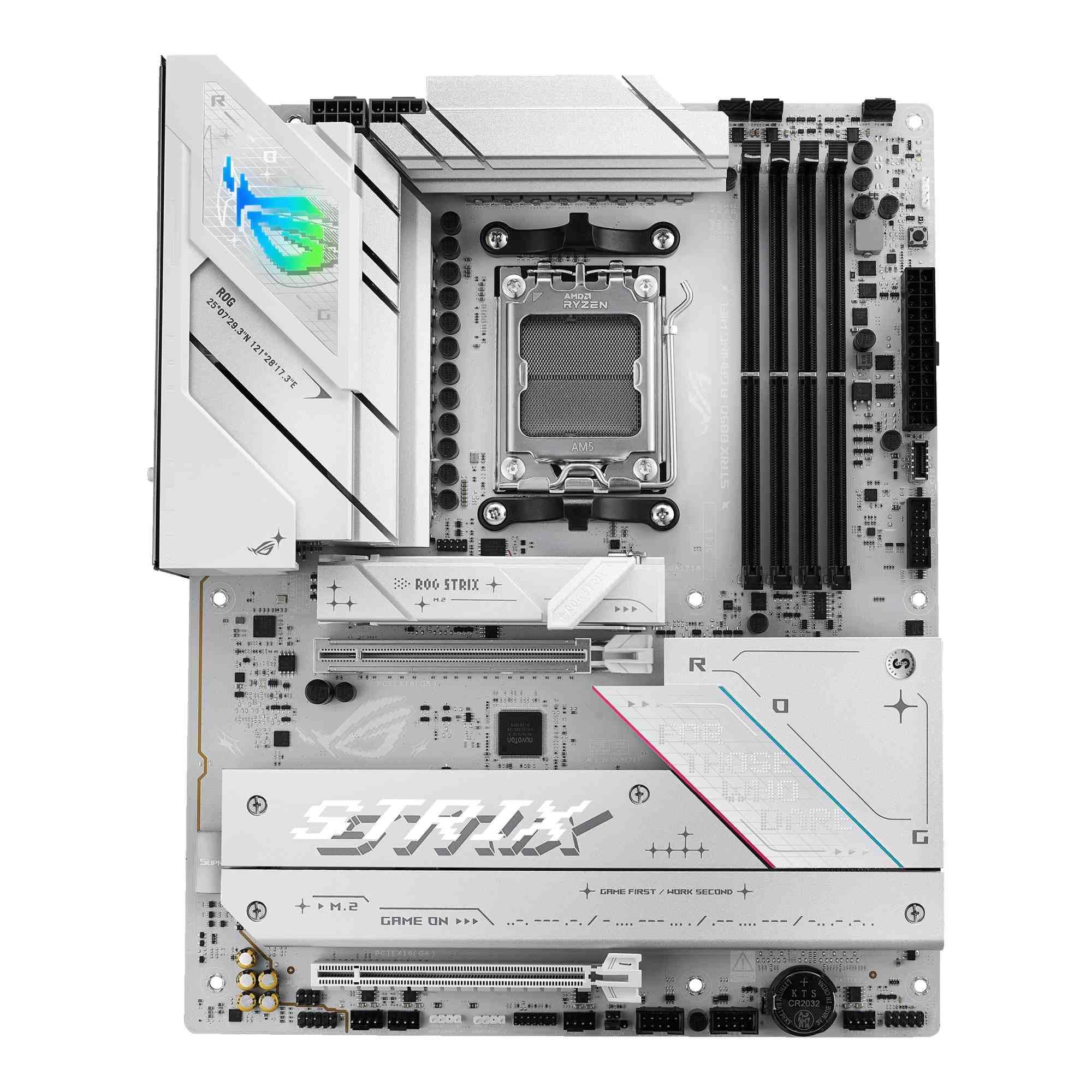

Płyta Asus ROG STRIX B850-A GAMING WIFI /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/AM5/ATX

INDEKS 4711387772676

KOD ID PGASA5M51020

CENA:
1489.99 zł brutto

Dostępnych w magazynie: 12
Dostawa do sklepu stacjonarnego trwa 1-2 dni robocze.




Udostępnij

Szczegóły

Producent ASUS
Wyposażenie dodatkowe 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubbers, 1 x Quick start guide
Maksymalna wielkość pamięci 192 GB
Chipset płyty głównej AMD B850
Wymiary [S x W] (mm) 305 x 244
Gniazdo procesora Socket AM5
Standard pamięci DDR5-8000+ (OC)
Format płyty ATX
Obsługiwane typy procesorów AMD Ryzen™ (AM5)
Uwagi do procesora AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Tryb pracy pamięci RAM Dual Channel
Gniazda karty graficznej HDMI, DisplayPort
Uwagi do karty graficznej Graphics specifications may vary between CPU types. Please refer to , AMD CPU specifications, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@30Hz as specified in DisplayPort 1.4, VGA resolution support depends on processors' or graphic cards' resolution
Zintegrowana karta dźwiękowa ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Gniazda karty dźwiękowej 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Złącza PCI Express x16 3
Uwagi do złącz PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot with Q-Release Slim, AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot with Q-Rlease Slim(supports PCIe 4.0 x8 or x4 mode), AMD B850 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode) , Specifications vary by CPU types., PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth , with M.2_3
Uwagi do karty sieciowej ASUS LANGuard
Port Bluetooth Bluetooth V5.4
Port równoległy (LPT) Brak
Inne porty i gniazda 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, CPU Over Voltage jumper, Front Panel Audio header (AAFP), Power-on button(s), 10-1 pin System Panel header, Thermal Sensor header, Thunderbolt™ (USB4®) header, BIOS FlashBack button , Clear CMOS button(s)
Gniazdo zasilania ATX (24-pin) + 2x ATX12V (8-pin)
Uwagi do pamięci RAM Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Supported memory types, data rate (speed), and number of DRAM modules vary , depending on the CPU and memory configuration, for more information please, refer to CPU/Memory Support list under the Support tab of product , information site or visit https://www.asus.com/support/download-center/., Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
Uwagi do karty dźwiękowej Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording inp, Supports up to 32-Bit/384 kHz playback on front panel, SupremeFX Shielding Technology, Savitech SV3H712 AMP , Rear optical S/PDIF out port, Premium audio capacitors, Audio cover, A chassis with an HD audio module in the front panel is required to support, 7.1 Surround Sound audio output., The LINE OUT port on the rear panel does not support spatial audio. If you , wish to use spatial audio, make sure to connect your audio output device , to the audio jack on the front panel of your chassis or use a , USB interface audio device.
Okres rękojmi w miesiącach 36
Zintegrowany kontroler SATA Chipset+CPU: 2x SATA III 6Gb/s - RAID 0,1 + 4x M.2
Uwagi do kontrolera SATA AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode), - M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode), - M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode), AMD B850 Chipset:, - M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4), - M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4), 2 x SATA 6Gb/s ports, Specifications vary by CPU types., M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is , operating, M.2_3 will be disabled., AMD RAIDXpert2 Technology:, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10
Port Wi-Fi IEEE 802.11a/b/g/n/ac/ax/be
Port LAN 1x 2,5 Gigabit LAN Intel®
Port PS/2 Brak
Port szeregowy (COM) Brak
Maksymalna ilość portów USB 2.0 6
Maksymalna ilość portów USB 3.x 11
Porty USB na panelu tylnym 2x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Cechy B850-A
Baza SCIP Nie
Ilość złącz pamięci DDR5 4
Uwagi do WiFi / BT 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full , functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E., For Windows 10, only Wi-Fi 6 is supported., Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between , countries, The Bluetooth® version may vary, please refer to the Wi-Fi module , manufacturer's website for the latest specifications.
Zawiera baterię / akumulator Tak
