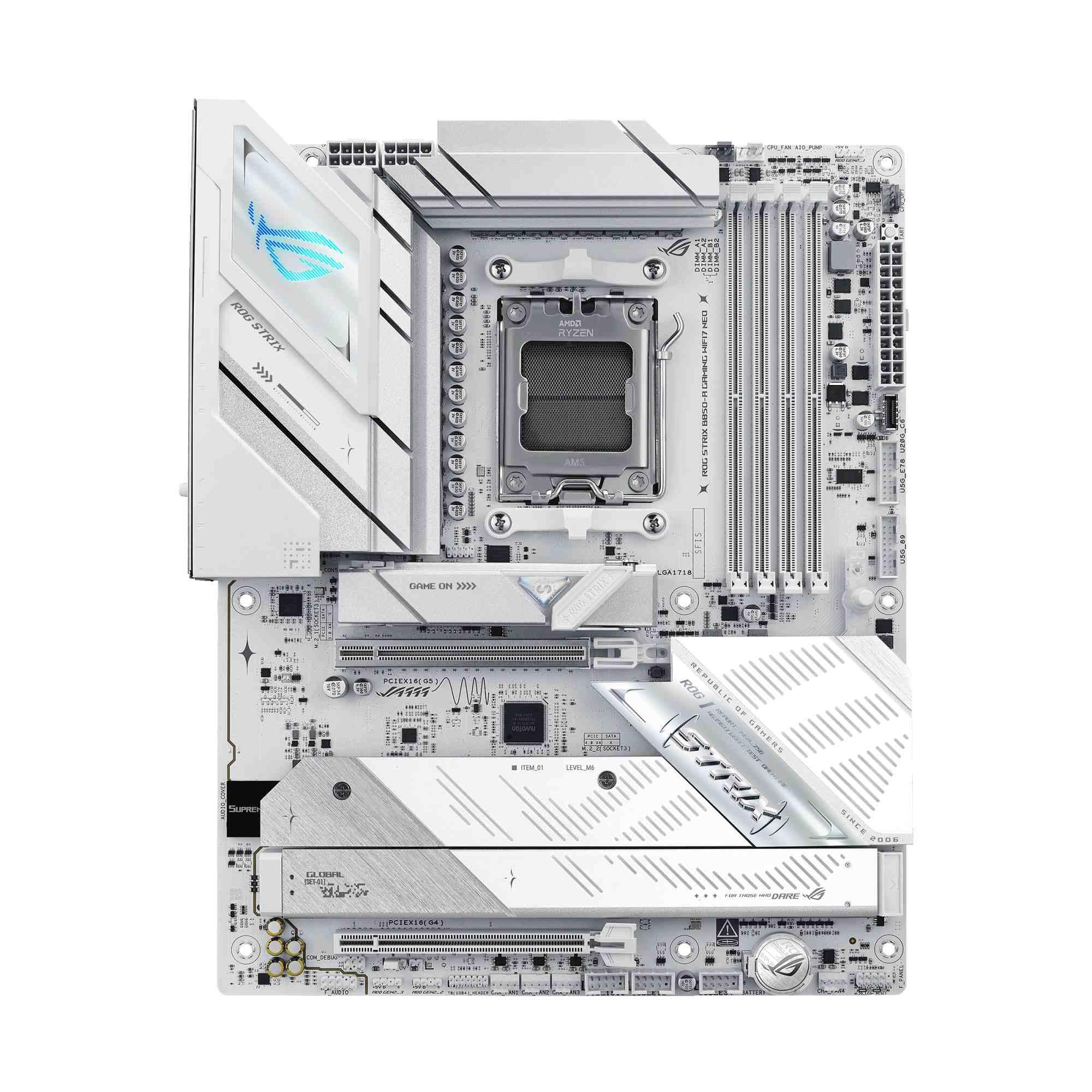

Płyta Asus ROG STRIX B850-A GAMING WIFI7 NEO /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/WiFi/BT/AM5/ATX

INDEKS 4711636446518

KOD ID PGASA5M510B0

CENA:
1477.99 zł brutto

Dostępnych w magazynie: 4
Dostawa do sklepu stacjonarnego trwa 1-2 dni robocze.




Udostępnij

Szczegóły

Producent ASUS
Wyposażenie dodatkowe 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubbers, 1 x Quick start guide
Maksymalna wielkość pamięci 256 GB
Chipset płyty głównej AMD B850
Wymiary [S x W] (mm) 305 x 244
Opakowanie BOX
Gniazdo procesora Socket AM5
Standard pamięci DDR5-9000+ (OC)
Format płyty ATX
Wbudowana karta graficzna Brak lub AMD Radeon™ Graphics (zależy od procesora)
Obsługiwane typy procesorów AMD Ryzen™ (AM5)
Uwagi do procesora AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
BIOS 64MB (512Mb) Flash ROM, UEFI AMI BIOS
Tryb pracy pamięci RAM Dual Channel
Gniazda karty graficznej HDMI
Uwagi do karty graficznej Available only on processors featuring integrated graphics. Graphics, specifications may vary between CPU types. Please refer to AMD CPU, specifications, Supports 4K@60Hz as specified in HDMI 2.1
Zintegrowana karta dźwiękowa ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Gniazda karty dźwiękowej 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Złącza PCI Express x16 2
Uwagi do złącz PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode) , AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slots (supports x8 mode) , AMD Ryzen™ 8500 & 8300 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slots (supports x4 mode) , AMD B850 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode) , Specifications vary by CPU types
Uwagi do karty sieciowej ASUS LANGuard
Port Bluetooth Bluetooth V5.4
Port równoległy (LPT) Brak
Inne porty i gniazda 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable RGB Gen 2 headers, CPU Over Voltage jumper, Front Panel Audio header (F_AUDIO), Start button, 10-1 pin Front Panel System header, Thunderbolt™ (USB4®) header
Gniazdo zasilania ATX (24-pin) + 2x ATX12V (8-pin)
Uwagi do pamięci RAM ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)
Uwagi do karty dźwiękowej - Impedance sense for front and rear headphone outputs , - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, - High quality 120 dB SNR stereo playback output and 110 dB SNR recording , input, - Supports up to 32-Bit/384 kHz playback on front panel , Audio Features : , - SupremeFX Shielding Technology , - Savitech SV3H712 AMP , - Rear optical S/PDIF out port , - Premium audio capacitors , - Dedicated audio PCB layers, - Audio Cover
Okres rękojmi w miesiącach 36
Zintegrowany kontroler SATA Chipset+CPU: 2x SATA III 6Gb/s + 4x M.2
Uwagi do kontrolera SATA AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors: , - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8500 & 8300 Series Desktop Processors: , - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode), AMD B850 Chipset:, - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*, - M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 2 x SATA 6Gb/s ports , The M.2_3 slot shares bandwidth with the PCIEX16(G4) slot. When either , the PCIEX16(G4) or M.2_3 slot is occupied, the slot runs at PCIe 4.0 x4 , mode. When both slots are occupied, each runs at PCIe 4.0x2 mode. You can , enter the BIOS to adjust the default settings as required., AMD RAIDXpert2 Technology:, - Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
Port Wi-Fi IEEE 802.11a/b/g/n/ac/ax/be
Port LAN 1x 5 Gigabit LAN Realtek®
Port PS/2 Brak
Port szeregowy (COM) Brak
Maksymalna ilość portów USB 2.0 8
Maksymalna ilość portów USB 3.x 15
Porty USB na panelu tylnym 2x USB 2.0 + 6x USB 3.0 + 2x USB 3.1 + 2x USB 3.1 Type-C
Gniazda USB na płycie głównej 3x USB 2.0 (6 portów) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
Cechy ROG STRIX B850-A GAMING WIFI7 NEO;ATX
Baza SCIP Nie
Ilość złącz pamięci DDR5 4
Uwagi do WiFi / BT Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth , Wi-Fi features may vary depending on the operating system. For Windows 11,, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 , 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, please note that no driver is available, , please refer to the Wi-Fi chipset vendor’s website for details., Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between , countries, The Bluetooth® version may vary, please refer to the Wi-Fi module , manufacturer’s website for the latest specifications
Zawiera baterię / akumulator Tak

Informacje GPSR

Szczegółowe informacje o warunkach oraz bezpiecznym użytkowaniu znajdują się w dokumentacji dołączonej do produktu lub na stronie producenta. Przed rozpoczęciem użytkowania produktu należy koniecznie zapoznać się z dokumentacją.

Producent

ASUSTeK Computer Inc., Taipei City, TAIWAN, www.asus.com/support/product/contactus/services/questionform/,

Podmiot odpowiedzialny

ASUS Computer GmbH, Ratingen, GERMANY, www.asus.com/support/product/contactus/services/questionform/,
