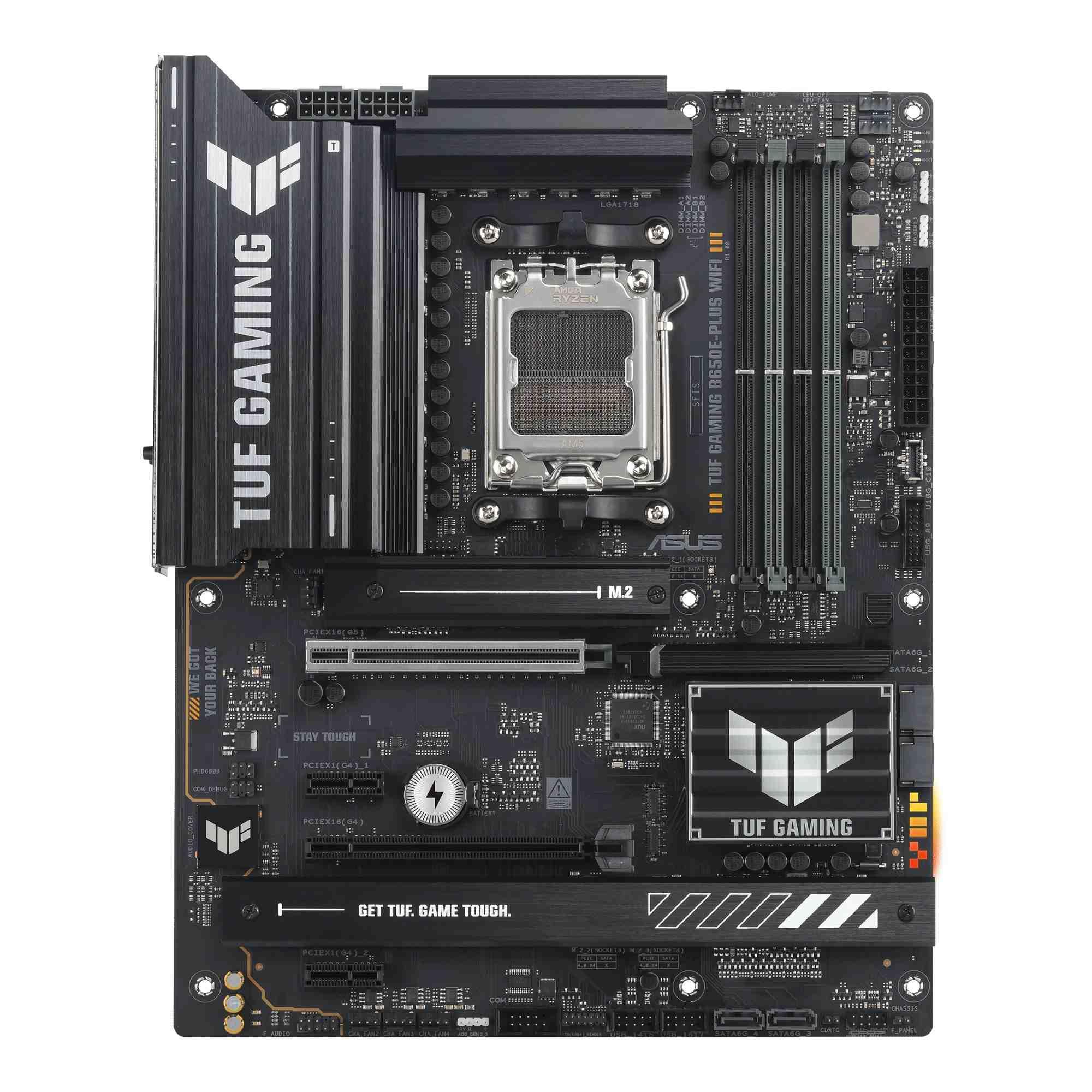

Płyta Asus TUF GAMING B650E-PLUS WIFI /AMD B650/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/AM5/ATX

INDEKS 4711387995488

KOD ID PGASA5M460P0

CENA:
963.99 zł brutto

Dostępnych w magazynie: 1
Dostawa do sklepu stacjonarnego trwa 1-2 dni robocze.




Udostępnij

Szczegóły

Producent ASUS
Wyposażenie dodatkowe 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x TUF Gaming sticker, 2 x M.2 Rubber Packages, 1 x Quick start guide
Maksymalna wielkość pamięci 256 GB
Chipset płyty głównej AMD B650
Wymiary [S x W] (mm) 305 x 244
Opakowanie BOX
Gniazdo procesora Socket AM5
Standard pamięci DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400 (OC), DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000+ (OC)
Format płyty ATX
Wbudowana karta graficzna Brak lub AMD Radeon™ Graphics (zależy od procesora)
Obsługiwane typy procesorów AMD Ryzen™ (AM5)
Uwagi do procesora Refer to www.asus.com for CPU support list
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Tryb pracy pamięci RAM Dual Channel
Gniazda karty graficznej HDMI, DisplayPort
Uwagi do karty graficznej Supports max. 8K@30Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, Graphics specifications may vary between CPU types
Zintegrowana karta dźwiękowa Realtek® ALC 1220P 7.1-Channel High Definition Audio CODEC
Gniazda karty dźwiękowej 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16 2
Uwagi do złącz PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors*: , - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B650 Chipset :, - 1 x PCIe 4.0 x16 slot (supports x1 mode), - 2 x PCIe 4.0 x1 slot
Uwagi do karty sieciowej TUF LANGuard
Port Bluetooth Bluetooth V5.3
Port równoległy (LPT) Brak
Inne porty i gniazda 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, Clear CMOS header, Chassis intrusion header, 10-1 pin System Panel header, Thunderbolt 4 header
Gniazdo zasilania ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Uwagi do pamięci RAM Supports AMD Extended Profiles for Overclocking (EXPO™), Supported memory types, data rate (speed), and number of DRAM modules vary , depending on the CPU and memory configuration, for more information please , refer to CPU/Memory Support list under the Support tab of product , information site or visit https://www.asus.com/support/, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function, ASUS Enhanced Memory Profile (AEMP)
Złącza PCI Express x1 2
Uwagi do karty dźwiękowej - Impedance sense for front and rear headphone outputs, - Internal audio Amplifier to enhance the highest quality sound for headpho, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - High quality 120 dB SNR stereo playback output and 113 dB SNR recording i, - Supports up to 32-Bit/192 kHz playback, - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, - Audio Cover, - Unique de-pop circuit
Okres rękojmi w miesiącach 36
Zintegrowany kontroler SATA Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 , (supports PCIe 4.0 x4/x2 mode), AMD B650 Chipset:, - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, AMD RAIDXpert2 Technology:, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10
Port Wi-Fi IEEE 802.11a/b/g/n/ac/ax
Port LAN 1x 2,5 Gigabit LAN Realtek®
Port PS/2 Brak
Port szeregowy (COM) 1x wewnętrzne gniazdo portu COM
Maksymalna ilość portów USB 2.0 10
Maksymalna ilość portów USB 3.x 13
Porty USB na panelu tylnym 6x USB 2.0 + 3x USB 3.0 + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Cechy TUF GAMING B650E-PLUS WIFI;ATX
Baza SCIP Nie
Ilość złącz pamięci DDR5 4
Uwagi do WiFi / BT 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) , Supports 2.4/5/6GHz frequency band, WiFi 6E 6GHz regulatory may vary between countries, The Bluetooth version may vary, please refer to the Wi-Fi module , manufacturer's website for the latest specifications
Zawiera baterię / akumulator Tak
