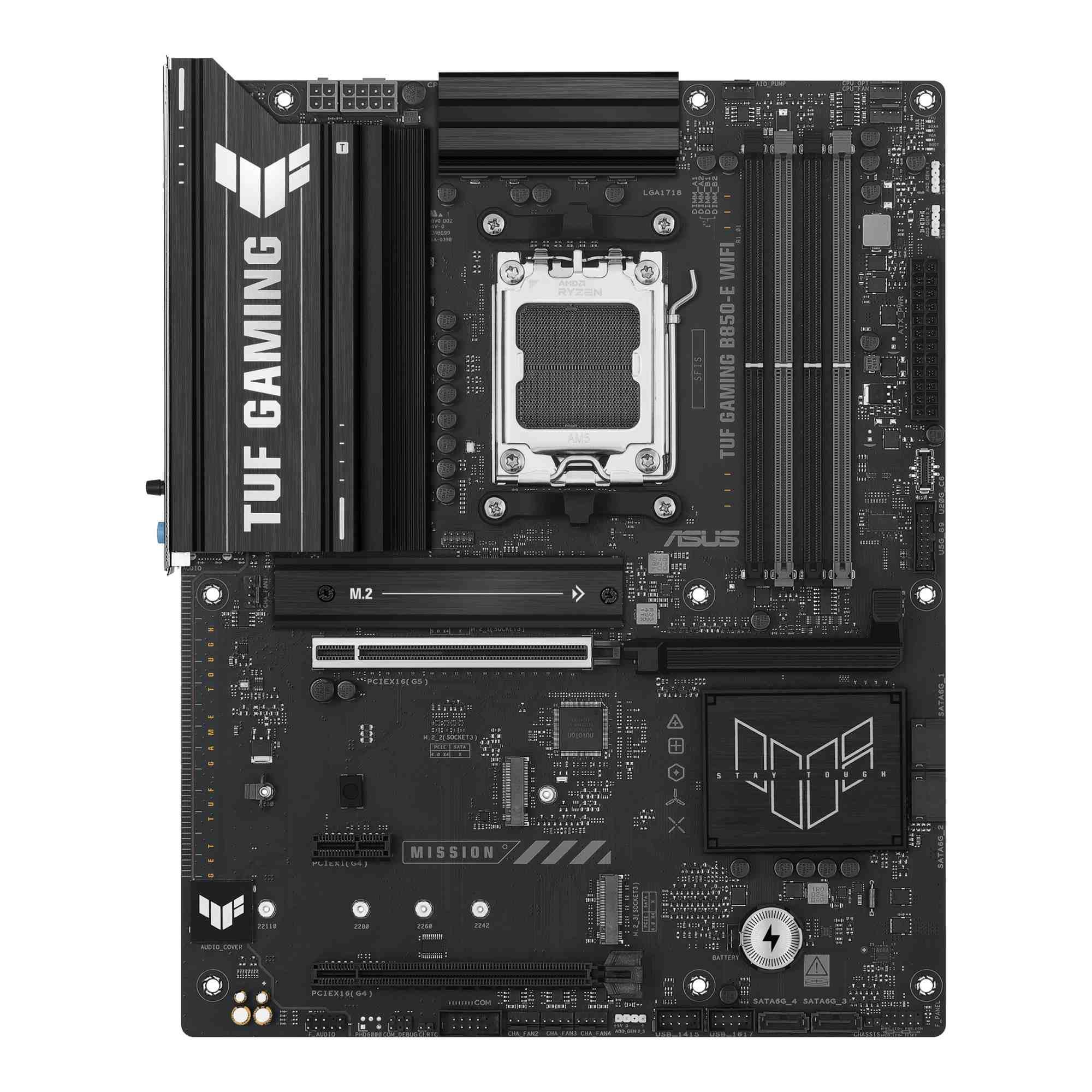

Płyta Asus TUF GAMING B850-E WIFI /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/WiFi/BT/AM5/ATX

INDEKS 4711387987544

KOD ID PGASA5M51070

CENA:
1245.99 zł brutto

Dostępnych w magazynie: 20
Dostawa do sklepu stacjonarnego trwa 1-2 dni robocze.




Udostępnij

Szczegóły

Producent ASUS
Wyposażenie dodatkowe 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x TUF Gaming sticker, 1 x M.2 Rubber Package, 2 x Screw Packages for M.2 SSD, 1 x Quick start guide
Maksymalna wielkość pamięci 256 GB
Chipset płyty głównej AMD B850
Wymiary [S x W] (mm) 305 x 244
Gniazdo procesora Socket AM5
Standard pamięci DDR5-8000+ (OC)
Format płyty ATX
Obsługiwane typy procesorów AMD Ryzen™ (AM5)
Uwagi do procesora AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Tryb pracy pamięci RAM Dual Channel
Gniazda karty graficznej HDMI, DisplayPort
Uwagi do karty graficznej Graphics specifications may vary between CPU types. Please refer to , AMD CPU specifications, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@30Hz as specified in DisplayPort 1.4
Zintegrowana karta dźwiękowa Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16 2
Uwagi do złącz PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B850 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x1 mode), - 1 x PCIe 4.0 x1 slot , Specifications vary by CPU types
Uwagi do karty sieciowej TUF LANGuard
Port Bluetooth Bluetooth V5.3
Port równoległy (LPT) Brak
Inne porty i gniazda 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, Clear CMOS header, Chassis intrusion header, Front Panel Audio header (AAFP), 10-1 pin System Panel header, BIOS FlashBack button
Gniazdo zasilania ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Uwagi do pamięci RAM ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Adjustments will be made based on the specifications of mass-produced , memory products available on the market., Supported memory types, data rate (speed), and number of DRAM modules vary , depending on the CPU and memory configuration, for more information please, refer to CPU/Memory Support list under the Support tab of product , information site or visit https://www.asus.com/support/download-center/., Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Złącza PCI Express x1 1
Uwagi do karty dźwiękowej - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - Supports up to 24-Bit/192 kHz playback, Audio Features:, - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, - Audio Cover, A chassis with an HD audio module in the front panel is required to, support 7.1 Surround Sound audio output.
Okres rękojmi w miesiącach 36
Zintegrowany kontroler SATA Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode), AMD B850 Chipset:, - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, Specifications vary by CPU types, AMD RAIDXpert2 Technology:, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10
Port Wi-Fi IEEE 802.11a/b/g/n/ac/ax
Port LAN 1x 2,5 Gigabit LAN Realtek®
Port PS/2 Brak
Port szeregowy (COM) 1x wewnętrzne gniazdo portu COM
Maksymalna ilość portów USB 2.0 11
Maksymalna ilość portów USB 3.x 8
Porty USB na panelu tylnym 3x USB 2.0 + 3x USB 3.0 + 1x USB 3.0 Type-C + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Cechy B850-E WIFI;ATX
Baza SCIP Nie
Ilość złącz pamięci DDR5 4
Uwagi do WiFi / BT Supports 2.4/5/6GHz frequency band, WiFi 6E 6GHz regulatory may vary between countries, supported only in , Windows 11 or later., The Bluetooth® version may vary, please refer to the Wi-Fi module , manufacturer's website for the latest specifications.
Zawiera baterię / akumulator Tak

Informacje GPSR

Szczegółowe informacje o warunkach oraz bezpiecznym użytkowaniu znajdują się w dokumentacji dołączonej do produktu lub na stronie producenta. Przed rozpoczęciem użytkowania produktu należy koniecznie zapoznać się z dokumentacją.

Producent

ASUSTeK Computer Inc., Taipei City, TAIWAN, www.asus.com/support/product/contactus/services/questionform/,

Podmiot odpowiedzialny

ASUS Computer GmbH, Ratingen, GERMANY, www.asus.com/support/product/contactus/services/questionform/,
