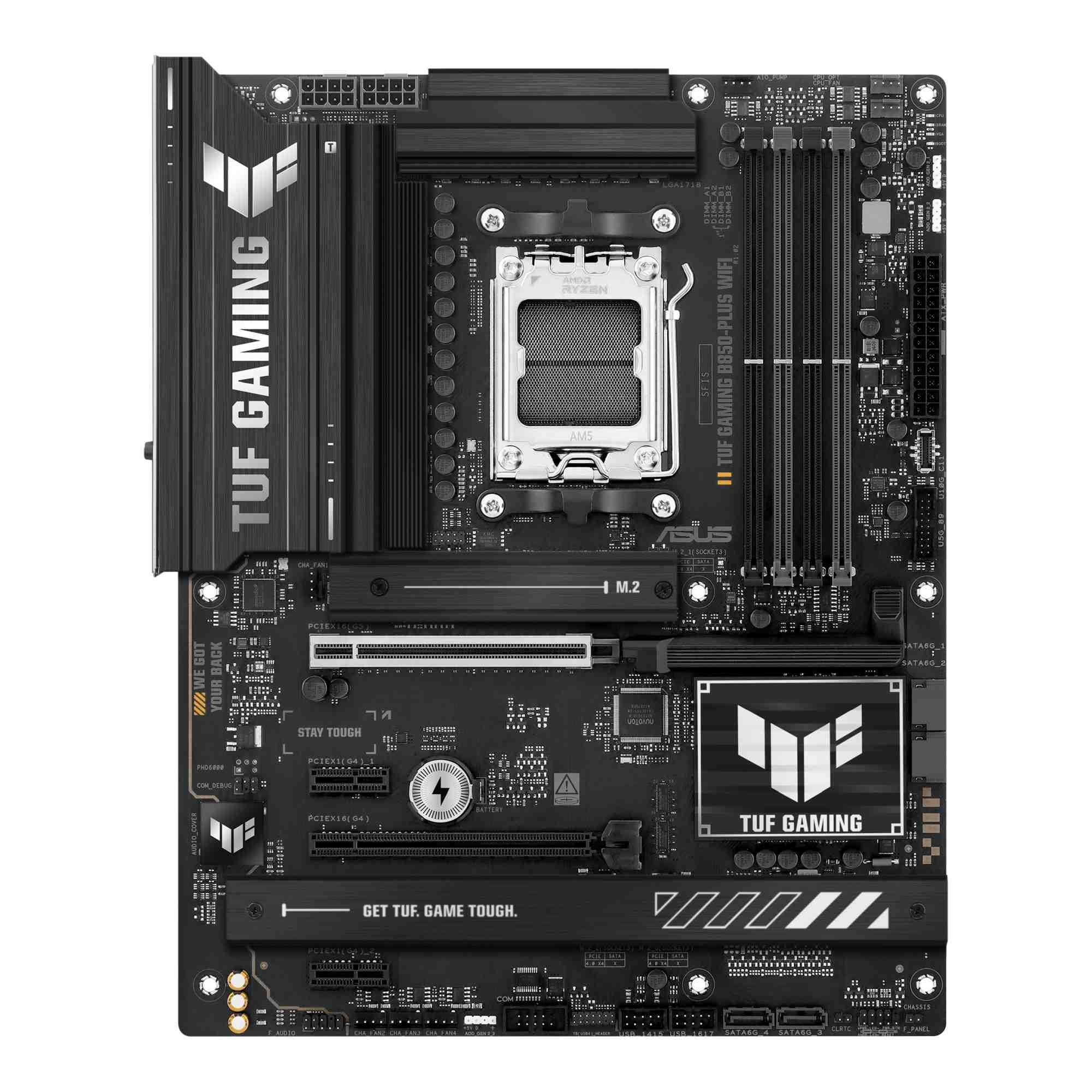

Płyta Asus TUF GAMING B850-PLUS WIFI /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/AM5/ATX
Szczegóły
| Producent | ASUS |
| Wyposażenie dodatkowe | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x TUF Gaming sticker, 2 x M.2 Rubber Packages, 1 x Quick start guide |
| Maksymalna wielkość pamięci | 192 GB |
| Chipset płyty głównej | AMD B850 |
| Wymiary [S x W] (mm) | 305 x 244 |
| Gniazdo procesora | Socket AM5 |
| Standard pamięci | DDR5-8000+ (OC) |
| Format płyty | ATX |
| Obsługiwane typy procesorów | AMD Ryzen™ (AM5) |
| Uwagi do procesora | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Tryb pracy pamięci RAM | Dual Channel |
| Gniazda karty graficznej | HDMI, DisplayPort |
| Uwagi do karty graficznej | Graphics specifications may vary between CPU types. Please refer to , AMD CPU specifications, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@30Hz as specified in DisplayPort 1.4 |
| Zintegrowana karta dźwiękowa | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Gniazda karty dźwiękowej | 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu |
| Złącza PCI Express x16 | 3 |
| Uwagi do złącz PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**, AMD B850 Chipset:, - 2 x PCIe 4.0 x16 slots (support x1 mode)***, - 2 x PCIe 4.0 x1 slots, Specifications vary by CPU types., The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be , disabled when M.2_3 runs. |
| Uwagi do karty sieciowej | TUF LANGuard |
| Port Bluetooth | Bluetooth V5.4 |
| Port równoległy (LPT) | Brak |
| Inne porty i gniazda | 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, Clear CMOS header, Chassis intrusion header, Front Panel Audio header (AAFP), 10-1 pin System Panel header, Thunderbolt™ (USB4®) header, BIOS FlashBack button |
| Gniazdo zasilania | ATX (24-pin) + 2x ATX12V (8-pin) |
| Uwagi do pamięci RAM | Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Adjustments will be made based on the specifications of mass-produced , memory products available on the market., Supported memory types, data rate (speed), and number of DRAM modules vary , depending on the CPU and memory configuration, for more information , please refer to CPU/Memory Support list under the Support tab of product , information site or visit https://www.asus.com/support/download-center/. |
| Złącza PCI Express x1 | 2 |
| Uwagi do karty dźwiękowej | Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for , headphone and speakers, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording , input (Line-in), Supports up to 32-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for , 7.1 Surround Sound audio. |
| Okres rękojmi w miesiącach | 36 |
| Zintegrowany kontroler SATA | Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2 |
| Uwagi do kontrolera SATA | AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 , (supports PCIe 4.0 x4/x2 mode), AMD B850 Chipset:, - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**, 4 x SATA 6Gb/s ports, Specifications vary by CPU types, The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be , disabled when M.2_3 runs., AMD RAIDXpert2 Technology:, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Port Wi-Fi | IEEE 802.11a/b/g/n/ac/ax/be |
| Port LAN | 1x 2,5 Gigabit LAN Realtek® |
| Port PS/2 | Brak |
| Port szeregowy (COM) | 1x wewnętrzne gniazdo portu COM |
| Maksymalna ilość portów USB 2.0 | 6 |
| Maksymalna ilość portów USB 3.x | 11 |
| Porty USB na panelu tylnym | 2x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C |
| Gniazda USB na płycie głównej | 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port) |
| Cechy | B850-PLUS |
| Baza SCIP | Nie |
| Ilość złącz pamięci DDR5 | 4 |
| Uwagi do WiFi / BT | 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full , functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. , For Windows 10, please note that no driver is available, please refer to , the Wi-Fi chipset vendor's website for details., Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between , countries, The Bluetooth® version may vary, please refer to the Wi-Fi module , manufacturer's website for the latest specifications. |
| Zawiera baterię / akumulator | Tak |
Informacje GPSR
Szczegółowe informacje o warunkach oraz bezpiecznym użytkowaniu znajdują się w dokumentacji dołączonej do produktu lub na stronie producenta. Przed rozpoczęciem użytkowania produktu należy koniecznie zapoznać się z dokumentacją.
Producent
ASUSTeK Computer Inc., Taipei City, TAIWAN, www.asus.com/support/product/contactus/services/questionform/,
Podmiot odpowiedzialny
ASUS Computer GmbH, Ratingen, GERMANY, www.asus.com/support/product/contactus/services/questionform/,
