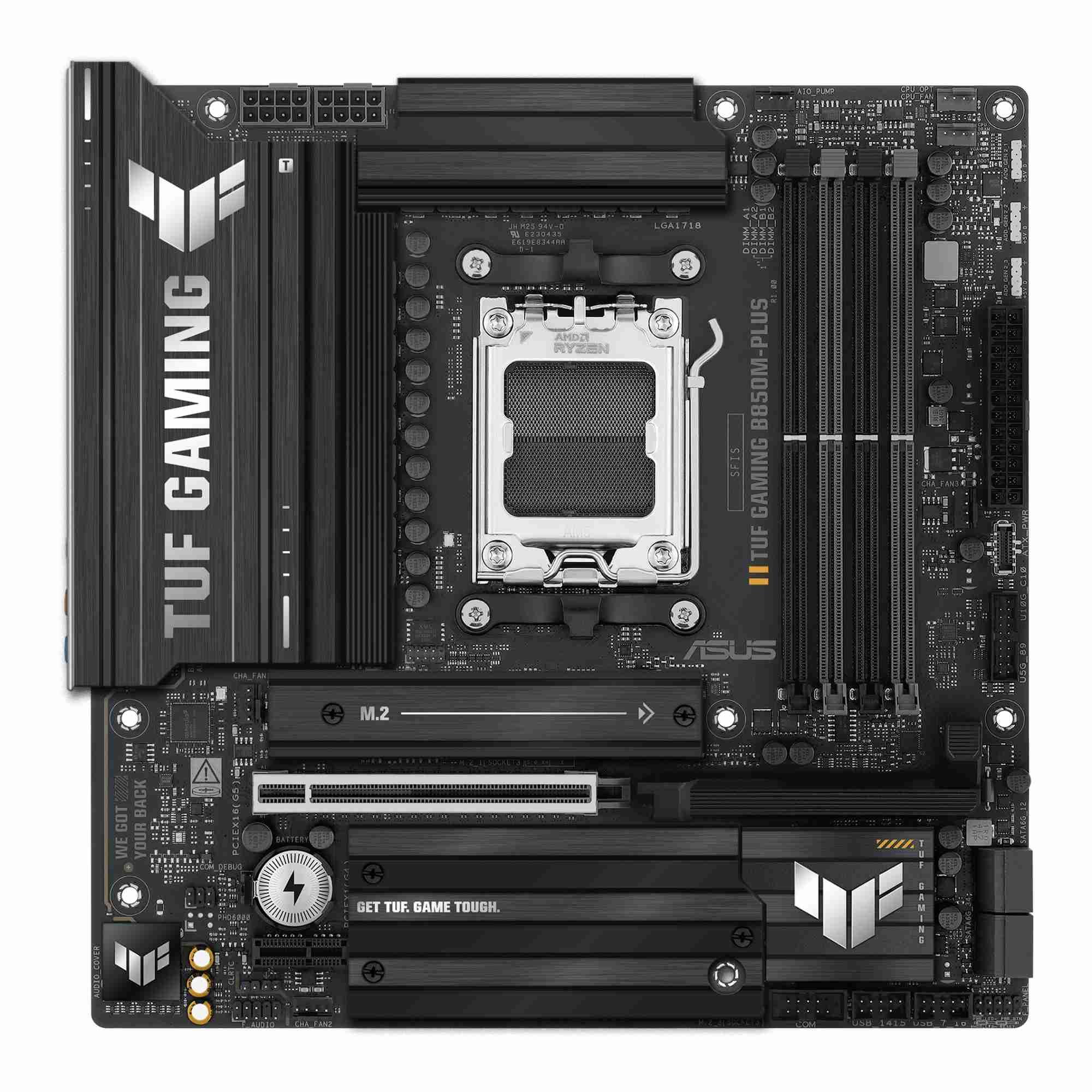

Płyta Asus TUF GAMING B850M-PLUS /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/AM5/mATX

INDEKS 4711387775172

KOD ID PGASA5M51060

CENA:
1073.99 zł brutto

Dostępnych w magazynie: 10
Dostawa do sklepu stacjonarnego trwa 1-2 dni robocze.




Udostępnij

Szczegóły

Producent ASUS
Wyposażenie dodatkowe 2 x SATA 6Gb/s cables, 1 x M.2 Rubber Package, 2 x Screw Packages for M.2 SSD, 1 x Quick start guide, 1 x TUF Gaming sticker
Maksymalna wielkość pamięci 192 GB
Chipset płyty głównej AMD B850
Wymiary [S x W] (mm) 244 x 244
Gniazdo procesora Socket AM5
Standard pamięci DDR5-8000+ (OC)
Format płyty M-ATX
Obsługiwane typy procesorów AMD Ryzen™ (AM5)
Uwagi do procesora AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Tryb pracy pamięci RAM Dual Channel
Gniazda karty graficznej HDMI, DisplayPort
Uwagi do karty graficznej Graphics specifications may vary between CPU types. Please refer to , AMD CPU specifications, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@30Hz as specified in DisplayPort 1.4
Zintegrowana karta dźwiękowa Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16 2
Uwagi do złącz PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B850 Chipset:, 1 x PCIe 4.0 x1 slot, Specifications vary by CPU types
Uwagi do karty sieciowej TUF LANGuard
Port Bluetooth Nie
Port równoległy (LPT) Brak
Inne porty i gniazda 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, Clear CMOS button(s), Chassis intrusion header, Front Panel Audio header (AAFP), 10-1 pin System Panel header, BIOS FlashBack button
Gniazdo zasilania ATX (24-pin) + 2x ATX12V (8-pin)
Uwagi do pamięci RAM ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Adjustments will be made based on the specifications of mass-produced , memory products available on the market., Supported memory types, data rate (speed), and number of DRAM modules vary , depending on the CPU and memory configuration, for more information please, refer to CPU/Memory Support list under the Support tab of product , information site or visit https://www.asus.com/support/download-center/., Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Złącza PCI Express x1 1
Uwagi do karty dźwiękowej Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone, and speakers, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording , input (Line-in), Supports up to 32-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for , 7.1 Surround Sound audio.
Okres rękojmi w miesiącach 36
Zintegrowany kontroler SATA Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode), AMD B850 Chipset:, - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, Specifications vary by CPU types, AMD RAIDXpert2 Technology:, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10
Port Wi-Fi Nie
Port LAN 1x 2,5 Gigabit LAN Realtek®
Port PS/2 Brak
Port szeregowy (COM) 1x wewnętrzne gniazdo portu COM
Maksymalna ilość portów USB 2.0 8
Maksymalna ilość portów USB 3.x 11
Porty USB na panelu tylnym 4x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Cechy B850M-PLUS
Baza SCIP Nie
Ilość złącz pamięci DDR5 4
Zawiera baterię / akumulator Tak
