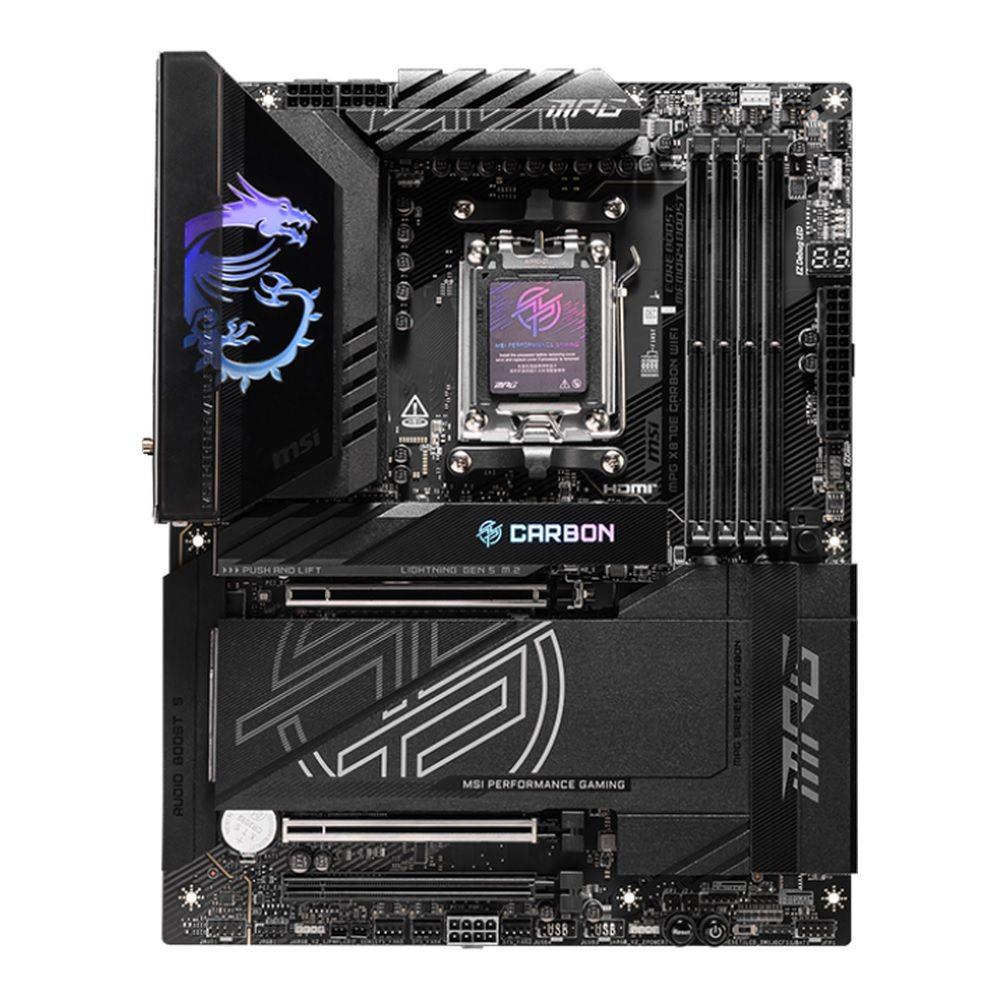

Płyta MSI MPG X870E CARBON WIFI /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX

INDEKS 4711377253536

KOD ID PGMIA5M50040

CENA:
2513.99 zł brutto

Dostępnych w magazynie: 30
Dostawa do sklepu stacjonarnego trwa 1-2 dni robocze.




Udostępnij

Szczegóły

Producent MSI
Wyposażenie dodatkowe EZ Wi-Fi antenna, EZ M.2 Clip II Removal
Maksymalna wielkość pamięci 256 GB
Chipset płyty głównej AMD X870
Wymiary [S x W] (mm) 243,84 x 304,8
Opakowanie BOX
Gniazdo procesora Socket AM5
Standard pamięci DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC), DDR5-8266 (OC), DDR5-8333 (OC), DDR5-8400 (OC)
Format płyty ATX
Wbudowana karta graficzna Brak lub AMD Radeon™ Graphics (zależy od procesora)
Obsługiwane typy procesorów AMD Ryzen™ (AM5)
Uwagi do procesora Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Tryb pracy pamięci RAM Dual Channel
Gniazda karty graficznej 2x USB4 Type-C, HDMI
Uwagi do karty graficznej USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum , resolution of 4K@60Hz, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed., Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz
Zintegrowana karta dźwiękowa Realtek® ALC4080 7.1-Channel USB High Performance Audio CODEC
Gniazda karty dźwiękowej Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF
Złącza PCI Express x16 3
Uwagi do złącz PCI - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) , - PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) , - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 & PCI_E2 slots:, - Supports up to PCIe 5.0 x16/ x0 or x8/ x4 , (For Ryzen™9000/ 7000 Series processors), - Supports up to PCIe 4.0 x8/ x0 , (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors), PCI_E3 slot:, - Supports up to PCIe 4.0 x4, PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support , varies depending on the CPU. Please refer to the PCIe configuration table , in the manual for more details.
Port Bluetooth Bluetooth V5.4
Port równoległy (LPT) Brak
Inne porty i gniazda CPU Fan, Combo Fan (Pump_Sys Fan), 5x System Fan, 2x Front Panel, Chassis Intrusion (JCI), Thermal Sensor connectors, 3x Addressable V2 RGB LED connector, RGB LED connector, EZ Conn-header (JAF_1)
Gniazdo zasilania ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
Uwagi do pamięci RAM Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, Ryzen™ 9000 Series Processors max. overclocking frequency:, - 1DPC 1R Max speed up to 8400+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max speed up to 4800+ MT/s, Supports AMD POR Speed and JEDEC Speed, Supports Memory Overclocking and AMD EXPO, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports CUDIMM, Clock Driver bypass mode only
Uwagi do karty dźwiękowej Supports up to 32-Bit/384 kHz playback on front panel
Okres rękojmi w miesiącach 36
Zintegrowany kontroler SATA Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 4x M.2 - RAID 0, 1, 10
Uwagi do kontrolera SATA - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, , supports 2280/2260 devices, - M.2_2 Source (From CPU) supports up to PCIe 5.0 x4,, supports 2280/2260 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4,, supports 22110/2280 devices , - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, , supports 2280/2260 devices, M.2_1:, - Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), - Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors), M.2_2:, - Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), - The M2_2 slot will be unavailable when using , Ryzen™ 8000 Series processors, PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support , varies depending on the CPU. Please refer to the PCIe configuration table , in the manual for more details.
Port Wi-Fi IEEE 802.11a/b/g/n/ac/ax/be
Port LAN 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® 8125), 1x 5 Gigabit LAN Realtek® 8126
Port PS/2 Brak
Port szeregowy (COM) Brak
Maksymalna ilość portów USB 2.0 4
Maksymalna ilość portów USB 3.x 16
Porty USB na panelu tylnym 9x USB 3.1 + 2x USB 3.1 Type-C + 2x USB4 Type-C
Gniazda USB na płycie głównej 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
Cechy MPG X870E CARBON WIFI;ATX
Maksymalna ilość portów USB 4.0 2
Baza SCIP Nie
Ilość złącz pamięci DDR5 4
Uwagi do WiFi / BT Wi-Fi 7 Solution, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth 5.4, MLO, 4KQAM, 6GHz band support may depend on every country’s regulations and Wi-Fi 7 , will be ready in Windows 11 version 24H2, The Bluetooth version may be updated, please refer to the Wi-Fi chipset , vendor’s website for details, Bluetooth 5.4 will be ready in Windows 11 version 24H2
