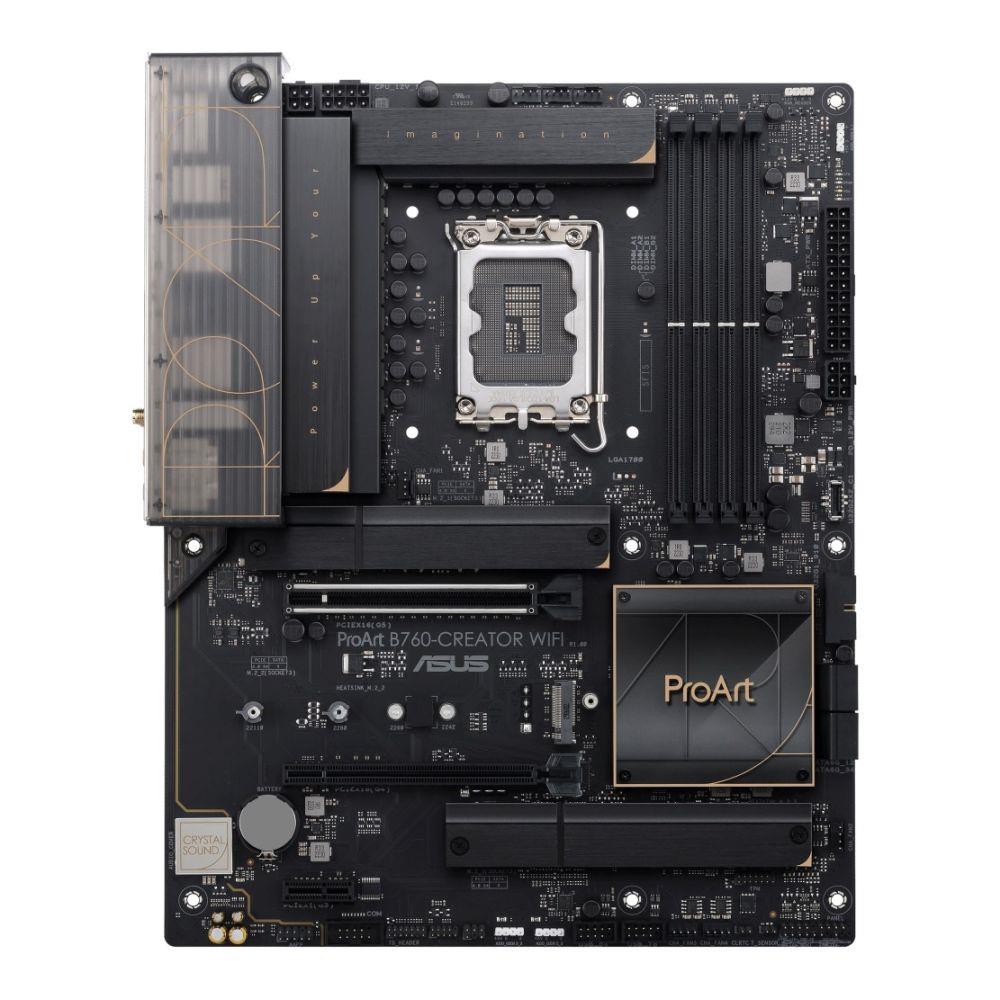

Płyta Asus ProArt B760-CREATOR WIFI /B760/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/s.1700/ATX

INDEKS 4711387275962

KOD ID PGASICIC50K0

CENA:
1143.99 zł brutto

Dostępnych w magazynie: 7
Dostawa do sklepu stacjonarnego trwa 1-2 dni robocze.




Udostępnij

Szczegóły

Producent ASUS
Wyposażenie dodatkowe 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 2 x M.2 Rubber Packages, 1 x ProArt ruler, 1 x Q-connector, 1 x ACC Express Activation Key Card, 1 x User guide
Maksymalna wielkość pamięci 192 GB
Chipset płyty głównej Intel® B760
Wymiary [S x W] (mm) 305 x 244
Opakowanie BOX
Gniazdo procesora Socket 1700
Format płyty ATX
Wbudowana karta graficzna Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
Obsługiwane typy procesorów Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700)
Uwagi do procesora Supports Intel® 10 nm CPU, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost , Max Technology 3.0**, Refer to www.asus.com for CPU support list, Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
BIOS 128 Mb WOL by PME, PXE
Tryb pracy pamięci RAM Dual Channel
Gniazda karty graficznej HDMI, DisplayPort
Uwagi do karty graficznej Graphics specifications may vary between CPU types, Please refer to www.intel.com for any updates, Supports 4K@60Hz as specified in HDMI 2.1, Support max. 8K@60Hz as specified in DisplayPort 1.4
Zintegrowana karta dźwiękowa Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16 2
Uwagi do złącz PCI Intel® 13th & 12th Gen Processors:, - 1 x PCIe 5.0/4.0/3.0 x16 slot, Intel® B760 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode) , - 1 x PCIe 3.0 x1 slot, PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 , runs at PCIe x4 mode by manually enabled
Port Bluetooth Bluetooth V5.2
Port równoległy (LPT) Brak
Inne porty i gniazda 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, AURA RGB header, Clear CMOS header, SPI TPM header (14-1pin), Thermal Sensor header, Thunderbolt header
Gniazdo zasilania ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin) + PCIe (6-pin)
Uwagi do pamięci RAM non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP), OptiMem II, Supported memory types, data rate (speed), and number of DRAM modules , vary depending on the CPU and memory configuration, for more information , please refer to CPU/Memory Support list under the Support tab of product , information site or visit https://www.asus.com/support/
Złącza PCI Express x1 1
Uwagi do karty dźwiękowej Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit
Okres rękojmi w miesiącach 36
Zintegrowany kontroler SATA Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA Intel® 13th & 12th Gen Processors:, - M.2_1 slot (Key M), type 2242/2260/2280/22110, Intel® B760 Chipset: , - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10, M.2_2 slot shares bandwidth with PCIe X1 and WiFi module and will run , PCIe 3.0 x2 by default. You need to set M.2_2 running at PCIe 3.0 x4 by , by manually enabled in BIOS
Port Wi-Fi IEEE 802.11a/b/g/n/ac/ax
Port LAN 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®), 1x 1 Gigabit LAN Intel®
Port szeregowy (COM) 1x wewnętrzne gniazdo portu COM
Maksymalna ilość portów USB 2.0 8
Maksymalna ilość portów USB 3.x 9
Porty USB na panelu tylnym 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C
Gniazda USB na płycie głównej 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Cechy ProArt B760-CREATOR WIFI;ATX
Baza SCIP Nie
Ilość złącz pamięci DDR5 4
