Producent |
MSI |
Wyposażenie dodatkowe |
SATA Cable, EZ M.2 Clip, Cable Stickers, Wi-Fi Antenna, , European Union Regulatory Notice, Quick Installation Guide |
Maksymalna wielkość pamięci |
192 GB |
Chipset płyty głównej |
Intel® B760 |
Wymiary [S x W] (mm) |
243,82 x 304,8 |
Opakowanie |
BOX |
Gniazdo procesora |
Socket 1700 |
Standard pamięci |
DDR5-4800, DDR5-5000, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC) |
Format płyty |
ATX |
Wbudowana karta graficzna |
Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora) |
Obsługiwane typy procesorów |
Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Pentium™ (Socket 1700), Intel Celeron™ (Socket 1700) |
Tryb pracy pamięci RAM |
Dual Channel |
Gniazda karty graficznej |
HDMI, DisplayPort |
Uwagi do karty graficznej |
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz, Support DP 1.4, maximum resolution of 8K 60Hz, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed |
Zintegrowana karta dźwiękowa |
Realtek® ALC897 7.1-Channel High Definition Audio |
Gniazda karty dźwiękowej |
Wewnętrzne gniazdo audio przedniego panelu, 5x Audio Jack, Wyjście optyczne S/PDIF |
Złącza PCI Express x16 |
2 |
Uwagi do złącz PCI |
2x PCI-E x16 slot (Supports x16/x4), 1x PCI-E x1 slot:, - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) , - PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) , - PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
Port Bluetooth |
Bluetooth V5.3 |
Inne porty i gniazda |
CPU Fan, 5x System Fan, 4x EZ Debug LED, 2x RGB LED connector, Gniazdo modułu TPM, Złącze czujnika otwarcia obudowy |
Gniazdo zasilania |
ATX (24-pin) + 2x ATX12V (8-pin) |
Uwagi do pamięci RAM |
Max. overclocking frequency:, - 1DPC 1R Max speed up to 7000+ MHz, - 1DPC 2R Max speed up to 6600+ MHz, - 2DPC 1R Max speed up to 6400+ MHz, - 2DPC 2R Max speed up to 5600+ MHz, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile |
Złącza PCI Express x1 |
1 |
Okres rękojmi w miesiącach |
36 |
Zintegrowany kontroler SATA |
Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2 |
Uwagi do kontrolera SATA |
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , , supports 22110/2280/2260/2242 devices , - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 2280/2260/2242 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, , supports 2280/2260/2242 devices, - supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Port Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax |
Port LAN |
1x 2,5 Gigabit LAN Realtek® |
Port PS/2 |
Brak |
Maksymalna ilość portów USB 2.0 |
8 |
Maksymalna ilość portów USB 3.x |
8 |
Porty USB na panelu tylnym |
4x USB 2.0 + 4x USB 3.1 + 1x USB 3.2 Type-C |
Gniazda USB na płycie głównej |
4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 Type-C |
Cechy |

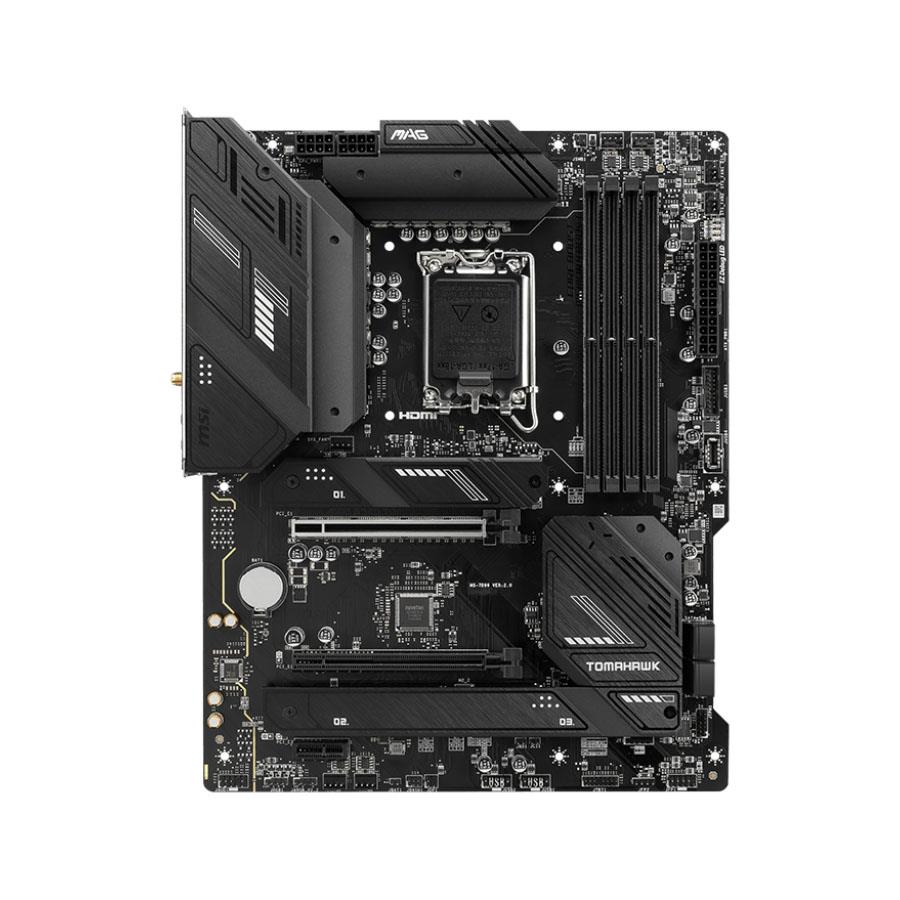

MAG B760 TOMAHAWK WIFI;ATX |
Baza SCIP |
Nie |
Ilość złącz pamięci DDR5 |
4 |
